How do i fix BSOD DPC_WATCHDOG_VIOLATION

JstZahra 0 Reputation points
2025-12-10T04:55:02.6233333+00:00

Hey, before i was using windows 11, and after some update my laptop got DPC_WATCHDOG_VIOLATION, after that i tried to downgrade the windows with media creation windows 10 from windows website, but it kept showing that BSOD error, i tried to analyze the minidump with analyzer online, it said this:

BSOD Analysis Report for 121025-4234-01.dmp

Bug Check

0x00000133 - DPC_WATCHDOG_VIOLATION

| Parameter | Value | Meaning |

|-----------|-------|--------|

| Param 1 | 0x1 | DPC Time Count: 0=Single DPC exceeded limit, 1=System cumulative limit

Value: 0x1

|

| Param 2 | 0x1e00 | Time Limit: DPC time limit in ticks

Value: 0x1e00

|

| Param 3 | 0xfffff801814fb320 | Cast to nt!DPC_WATCHDOG_GLOBAL_TRIAGE_BLOCK: Pointer to triage block

Value: 0xfffff801814fb320

|

| Param 4 | 0x0 | Reserved: Reserved

Value: 0x0

|

Parameter Analysis

| Parameter | Value | Decoded | Significance |

|-----------|-------|---------|---------------|

| Parameter 1 | 0x1 | DPC time count: 1 | Indicates that at least one DPC routine has exceeded its time limit. |

| Parameter 2 | 0x1e00 | DPC time limit: 7680 (microseconds) | This is the time limit that the DPC routine exceeded. |

| Parameter 3 | 0xfffff801814fb320 | Pointer to DPC_WATCHDOG_GLOBAL_TRIAGE_BLOCK | This parameter points to internal kernel data structures used for diagnosing DPC watchdog violations. |

| Parameter 4 | 0x0 | Reserved | This parameter is reserved and typically contains no relevant information. |

Crash Location

Module: ntoskrnl.exe

Address: 0xfffff80180bfd6f0 (+0x3fd6f0)

Summary

The system crashed due to a DPC_WATCHDOG_VIOLATION, indicating that a Deferred Procedure Call (DPC) routine took too long to complete.

Probable Cause

Culprit: ntoskrnl.exe

A DPC routine, likely associated with a specific driver, exceeded the allowed time limit, causing the system to halt to prevent further instability. The exact driver is not explicitly identified in the provided data, but the nature of DPC_WATCHDOG_VIOLATION often points to issues with device drivers or hardware that are not responding promptly.

Recommendations

  • Update all device drivers, especially those related to hardware that has recently been changed or updated.
  • Check for and install any available Windows updates, as these often include driver updates and stability fixes.
  • If the issue persists, consider performing a clean boot to isolate the problematic driver or service.
  • Monitor system temperatures and ensure proper cooling, as overheating can sometimes lead to DPC issues.
  • If a specific third-party driver is suspected, consider temporarily disabling or uninstalling it to test for stability.
  • Update SSD firmware
  • Change SATA mode in BIOS (AHCI/IDE)
  • Update storage controller drivers
  • Disable USB selective suspend
  • Check for driver updates via Device Manager

Loaded Modules (50)

  • [CRASH] ntoskrnl.exe @ 0xfffff80180800000
  • hal.dll @ 0xfffff8017d670000
  • kd.dll @ 0xfffff8017d680000
  • CLFS.SYS @ 0xfffff8017d6c0000
  • tm.sys @ 0xfffff8017d690000
  • PSHED.dll @ 0xfffff8017d730000
  • BOOTVID.dll @ 0xfffff8017d750000
  • FLTMGR.SYS @ 0xfffff8017d880000
  • msrpc.sys @ 0xfffff8017d920000
  • ksecdd.sys @ 0xfffff8017d8f0000
  • clipsp.sys @ 0xfffff8017d760000
  • cmimcext.sys @ 0xfffff8017d990000
  • werkernel.sys @ 0xfffff8017d9a0000
  • ntosext.sys @ 0xfffff8017d9c0000
  • CI.dll @ 0xfffff80183400000
  • cng.sys @ 0xfffff801834f0000
  • Wdf01000.sys @ 0xfffff801835b0000
  • WDFLDR.SYS @ 0xfffff8017d9d0000
  • WppRecorder.sys @ 0xfffff80183690000
  • SleepStudyHelper.sys @ 0xfffff8017d9f0000
  • acpiex.sys @ 0xfffff801836b0000
  • SgrmAgent.sys @ 0xfffff801836e0000
  • ACPI.sys @ 0xfffff80183700000
  • WMILIB.SYS @ 0xfffff8017da00000
  • msisadrv.sys @ 0xfffff801837d0000
  • pci.sys @ 0xfffff801837e0000
  • tpm.sys @ 0xfffff80183860000
  • intelpep.sys @ 0xfffff801838d0000
  • WindowsTrustedRT.sys @ 0xfffff80183940000
  • IntelTA.sys @ 0xfffff80183960000
  • WindowsTrustedRTProxy.sys @ 0xfffff80183970000
  • pcw.sys @ 0xfffff80183980000
  • vdrvroot.sys @ 0xfffff801839a0000
  • pdc.sys @ 0xfffff801839c0000
  • CEA.sys @ 0xfffff801839f0000
  • partmgr.sys @ 0xfffff80183a10000
  • spaceport.sys @ 0xfffff80183a50000
  • volmgr.sys @ 0xfffff80183b00000
  • volmgrx.sys @ 0xfffff80183b20000
  • mountmgr.sys @ 0xfffff80183b90000
  • storahci.sys @ 0xfffff80183bb0000
  • storport.sys @ 0xfffff80183c00000
  • stornvme.sys @ 0xfffff80183cc0000
  • EhStorClass.sys @ 0xfffff80183cf0000
  • fileinfo.sys @ 0xfffff80183d10000
  • Wof.sys @ 0xfffff80183d30000
  • WdFilter.sys @ 0xfffff80183d80000
  • Ntfs.sys @ 0xfffff80183de0000
  • Fs_Rec.sys @ 0xfffff80183bf0000
  • ndis.sys @ 0xfffff801840c0000

And here are my BSOD minidump link:
https://1drv.ms/u/c/ff726a4256e885b6/IQAvcpq2fA_HQaP6B6SYC-ngAVVVjFCaPt8SGwCIOCL4oVI?e=a5Kxtm

ps: im sorry if my english is bad, its not my first language

Windows for home | Windows 10 | Windows update
0 comments

4 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Q&A Assist
    2025-12-10T04:55:17.9133333+00:00
    AI generated content. This question contains an answer created with AI from Q&A Assist. Learn more

    To fix the BSOD DPC_WATCHDOG_VIOLATION (Stop Code 0x00000133), you can follow these steps:

    1. Update Device Drivers: Ensure that all your device drivers are up to date, especially those related to hardware that has recently been changed or updated. You can do this through Device Manager.
    2. Check for Windows Updates: Install any available Windows updates, as these often include important driver updates and stability fixes.
    3. Perform a Clean Boot: This can help isolate the problematic driver or service. To do this, you can disable all non-Microsoft services and startup programs and then restart your computer.
    4. Monitor System Temperatures: Overheating can sometimes lead to DPC issues. Ensure your laptop is properly cooled and not overheating.
    5. Update SSD Firmware: If you're using an SSD, check if there's a firmware update available from the manufacturer.
    6. Change SATA Mode in BIOS: Switch between AHCI and IDE modes in your BIOS settings to see if it resolves the issue.
    7. Disable USB Selective Suspend: This feature can sometimes cause issues with USB devices. You can disable it in the Power Options settings.
    8. Check Event Viewer: Look for any critical errors in the Event Viewer that occurred around the time of the BSOD. This can provide clues about the underlying issue.
    9. Run Hardware Diagnostics: If the problem persists, run any hardware diagnostics provided by your laptop manufacturer to check for hardware issues.

    If these steps do not resolve the issue, you may need to consider reverting to a previous version of Windows or further isolating the hardware causing the problem.

    References:

    0 comments
  2. Sumit D - IA 151.5K Reputation points Independent Advisor
    2025-12-10T05:45:59.9733333+00:00

    Hi, I investigated the dump file. AMDGPIO.sys was named.Please supply the following Information.

    Right-click the Start button and Choose the Run option

    Type in msinfo32

    Press enter.

    Take a screenshot of the System Summary window and post it in the next reply.

    I look forward to your response and am eager to collaborate until we find a solution.

  3. JstZahra 0 Reputation points
    2025-12-10T05:55:39.51+00:00

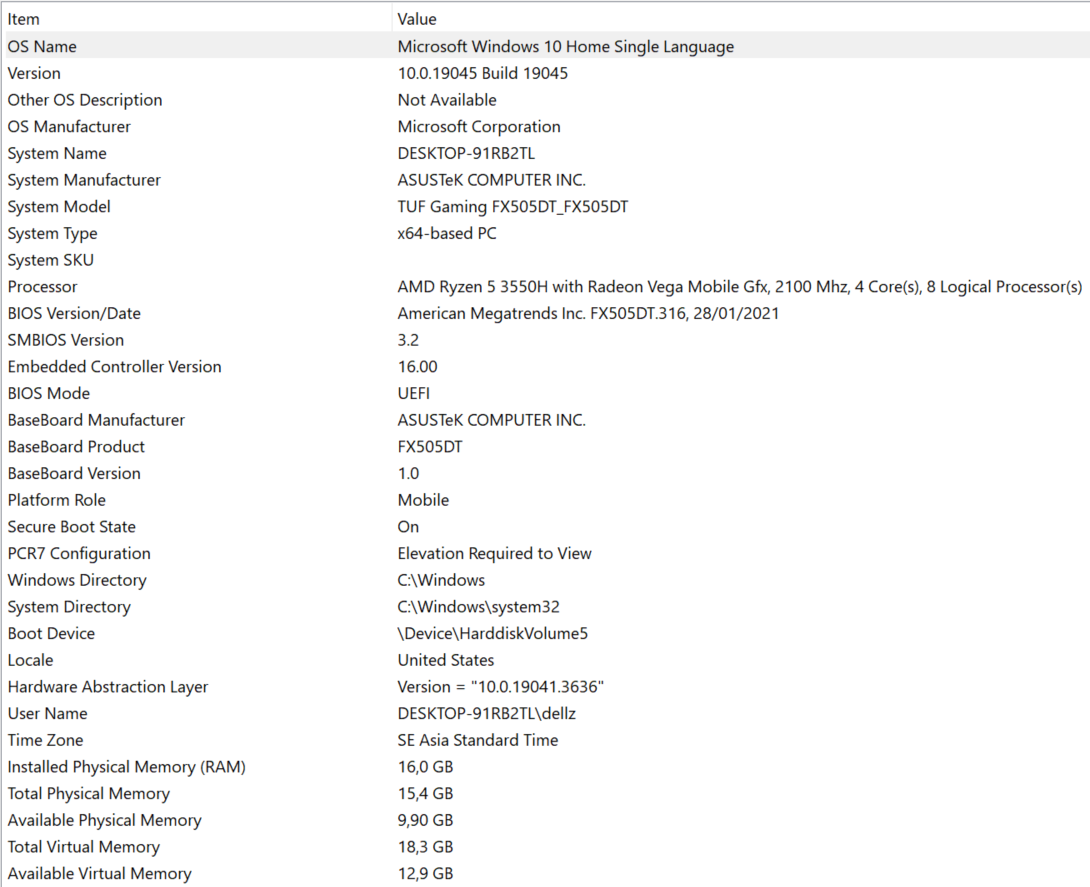

    Here are the screenshot of the System Summary windowsummary 1

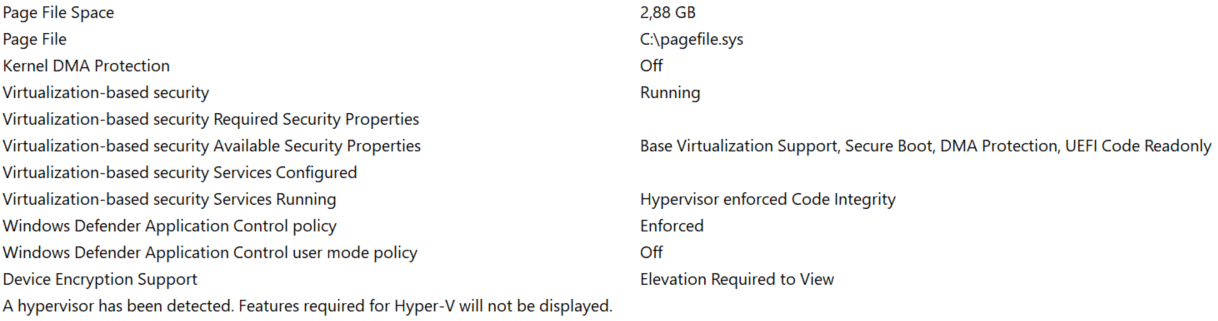

    summary 2

    0 comments
  4. Sumit D - IA 151.5K Reputation points Independent Advisor
    2025-12-10T17:27:13.3066667+00:00

    Thank you, the BIOS is also fully updated. Are you running RAM on an XMP profile or any overclokcing?
