Set up private access

1. Start the process for creating a Grafana workspace

2. In the Create Grafana Workspace pane, select the Networking tab.

3. Under Public Access > Access Options, select Disabled to disable public access to the Azure Managed Grafana workspace and only allow access through private endpoints.

4. Click Review + create when ready.



In the CLI, run the az grafana create command and replace the placeholders <grafana-workspace> and <resource-group> with your own information:

az grafana create --name <grafana-workspace> ---resource-group <resource-group> --public-network-access disabled

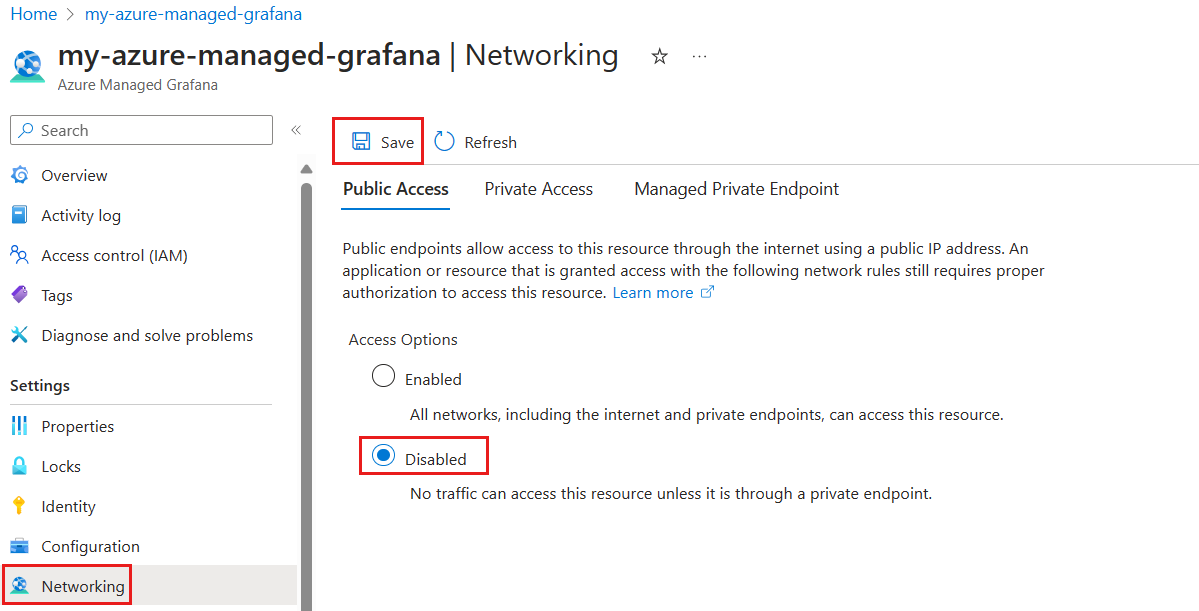

1. Navigate to your Azure Managed Grafana workspace in the Azure portal.

2. In the left-hand menu, under Settings, select Networking.

3. Under Public Access, select Disabled to disable public access to the Azure Managed Grafana workspace and only allow access through private endpoints. If you already had public access disabled and instead wanted to enable public access to your Azure Managed Grafana workspace, you would select Enabled.

4. Select Save.



In the CLI, run the az grafana update command and replace the placeholders <grafana-workspace> and <resource-group> with your own information:

az grafana update --name <grafana-workspace> ---resource-group <resource-group> --public-network-access disabled

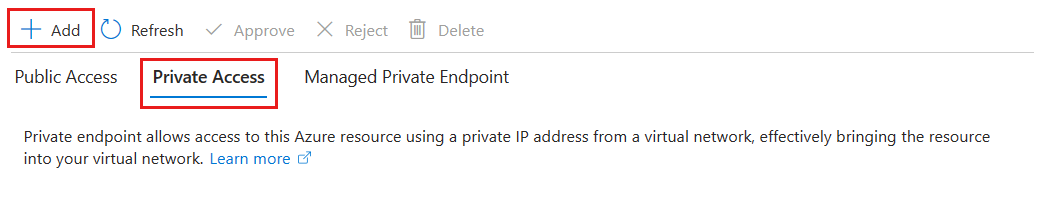

1. In Networking, select the Private Access tab and then Add to start setting up a new private endpoint.

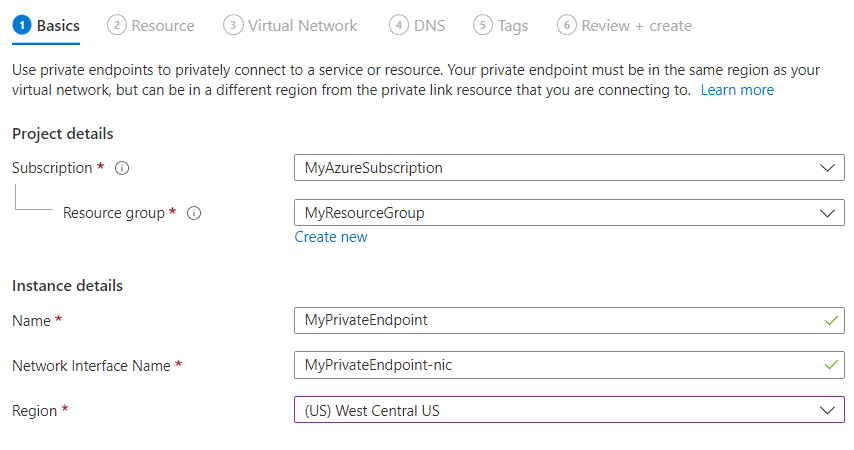

2. Fill out the Basics tab with the following information:

   Parameter	Description	Example
   Subscription	Select an Azure subscription. Your private endpoint must be in the same subscription as your virtual network. You'll select a virtual network later in this how-to guide.	MyAzureSubscription
   Resource group	Select a resource group or create a new one.	MyResourceGroup
   Name	Enter a name for the new private endpoint for your Azure Managed Grafana workspace.	MyPrivateEndpoint
   Network Interface Name	This field is completed automatically. Optionally edit the name of the network interface.	MyPrivateEndpoint-nic
   Region	Select a region. Your private endpoint must be in the same region as your virtual network.	(US) West Central US



3. Select Next : Resource >. Private Link offers options to create private endpoints for different types of Azure resources. The current Azure Managed Grafana workspace is automatically filled in the Resource field.

   1. The resource type Microsoft.Dashboard/grafana and the target subresource grafana indicate that you're creating an endpoint for an Azure Managed Grafana workspace.

   2. The name of your workspace is listed under Resource.

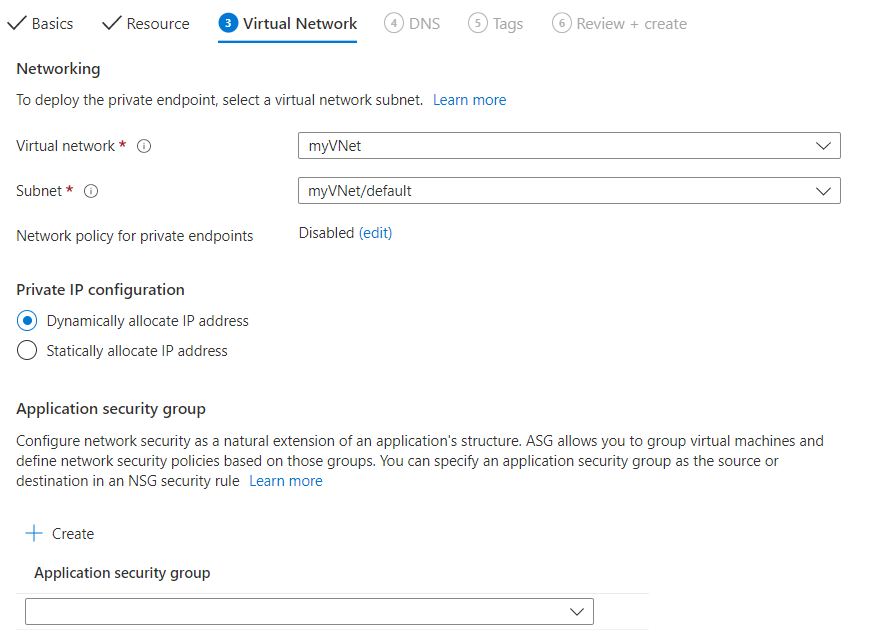

4. Select Next : Virtual Network >.

   1. Select an existing Virtual network to deploy the private endpoint to. If you don't have a virtual network, create a virtual network.

   2. Select a Subnet from the list.

   3. Network policy for private endpoints is disabled by default. Optionally, select edit to add a network security group or a route table policy. This change would affect all private endpoints associated to the selected subnet.

   4. Under Private IP configuration, select the option to allocate IP addresses dynamically. For more information, see Private IP addresses.

   5. Optionally, you can select or create an Application security group. Application security groups allow you to group virtual machines and define network security policies based on those groups.

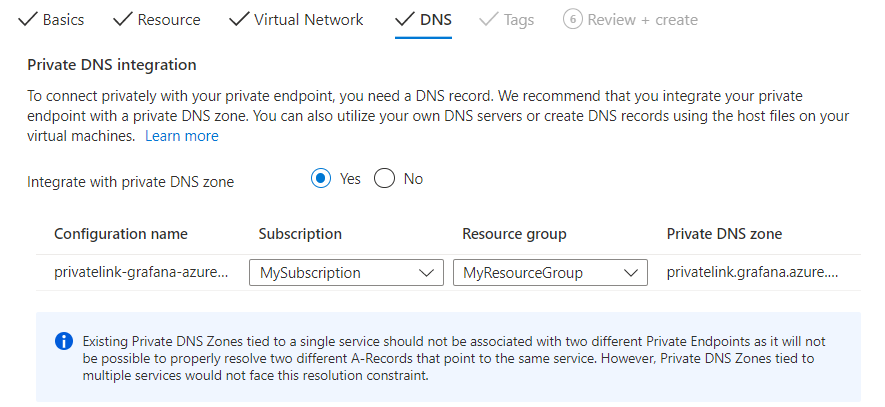

5. Select Next : DNS > to configure a DNS record. If you don't want to make changes to the default settings, you can move forward to the next tab.

   1. For Integrate with private DNS zone, select Yes to integrate your private endpoint with a private DNS zone. You can also use your own DNS servers or create DNS records using the host files on your virtual machines.

   2. A subscription and resource group for your private DNS zone are preselected. You can change them optionally.

   To learn more about DNS configuration, go to Name resolution for resources in Azure virtual networks and DNS configuration for Private Endpoints. Azure Private Endpoint private DNS zone values for Azure Managed Grafana are listed at Azure services DNS zone.



6. Select Next : Tags > and optionally create tags. Tags are name/value pairs that enable you to categorize resources and view consolidated billing by applying the same tag to multiple resources and resource groups.

7. Select Next : Review + create > to review information about your Azure Managed Grafana workspace, private endpoint, virtual network and DNS. You can also select Download a template for automation to reuse JSON data from this form later.

8. Select Create.

Once deployment is complete, you'll get a notification that your endpoint has been created. If it's autoapproved, you can start accessing your workspace privately. Otherwise, you have to wait for approval.

1. To set up your private endpoint, you need a virtual network. If you don't have one yet, create a virtual network with az network vnet create. Replace the placeholder texts <vnet>, <resource-group>, <subnet>, and <vnet-location> with the name of your new virtual network, resource group, and name, and vnet location.

   az network vnet create --name <vnet> --resource-group <resource-group> --subnet-name <subnet> --location <vnet-location>


   Placeholder	Description	Example
   <vnet>	Enter a name for your new virtual network. A virtual network enables Azure resources to communicate privately with each other, and with the internet.	MyVNet
   <resource-group>	Enter the name of an existing resource group for your virtual network.	MyResourceGroup
   <subnet>	Enter a name for your new subnet. A subnet is a network inside a network. This is where the private IP address is assigned.	MySubnet
   <vnet-location>	Enter an Azure region. Your virtual network must be in the same region as your private endpoint.	centralus

2. Run the command az grafana show to retrieve the properties of the Azure Managed Grafana workspace, for which you want to set up private access. Replace the placeholder <grafana-workspace> with the name of your workspace.

   az grafana show --name <grafana-workspace>


   This command generates an output with information about your Azure Managed Grafana workspace. Note down the id value. For instance: /subscriptions/123/resourceGroups/MyResourceGroup/providers/Microsoft.Dashboard/grafana/my-azure-managed-grafana.

3. Run the command az network private-endpoint create to create a private endpoint for your Azure Managed Grafana workspace. Replace the placeholder texts <resource-group>, <private-endpoint>, <vnet>, <private-connection-resource-id>, <connection-name>, and <location> with your own information.

   az network private-endpoint create --resource-group <resource-group> --name <private-endpoint> --vnet-name <vnet> --subnet Default --private-connection-resource-id <private-connection-resource-id> --connection-name <connection-name> --location <location> --group-id grafana


   Placeholder	Description	Example
   <resource-group>	Enter the name of an existing resource group for your private endpoint.	MyResourceGroup
   <private-endpoint>	Enter a name for your new private endpoint.	MyPrivateEndpoint
   <vnet>	Enter the name of an existing vnet.	Myvnet
   <private-connection-resource-id>	Enter your Azure Managed Grafana workspace's private connection resource ID. This is the ID you saved from the output of the previous step.	/subscriptions/123/resourceGroups/MyResourceGroup/providers/Microsoft.Dashboard/grafana/my-azure-managed-grafana
   <connection-name>	Enter a connection name.	MyConnection
   <location>	Enter an Azure region. Your private endpoint must be in the same region as your virtual network.	centralus

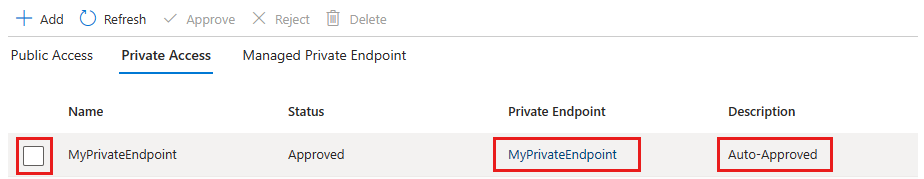

Go to Networking > Private Access in your Azure Managed Grafana workspace to access the private endpoints linked to your workspace.

1. Check the connection state of your private link connection. When you create a private endpoint, the connection must be approved. If the resource for which you're creating a private endpoint is in your directory and you have sufficient permissions, the connection request will be autoapproved. Otherwise, you must wait for the owner of that resource to approve your connection request. For more information about the connection approval models, go to Manage Azure Private Endpoints.

2. To manually approve, reject or remove a connection, select the checkbox next to the endpoint you want to edit and select an action item from the top menu.

3. Optionally select the name of the private endpoint to open the private endpoint resource and access more information or to edit the private endpoint.



Review private endpoint connection details

Run the az network private-endpoint-connection list command to review all private endpoint connections linked to your Azure Managed Grafana workspace and check their connection state. Replace the placeholders <resource-group> and <grafana-workspace> with the name of the resource group and Azure Managed Grafana workspace.

az network private-endpoint-connection list --resource-group <resource-group> --name <grafana-workspace> --type Microsoft.Dashboard/grafana

Optionally, to get the details of a specific private endpoint, use the az network private-endpoint-connection show command. Replace the placeholder texts <resource-group> and <grafana-workspace> with the name of the resource group and the name of the Azure Managed Grafana workspace.

az network private-endpoint-connection show --resource-group <resource-group> --name <grafana-workspace> --type Microsoft.Dashboard/grafana

Get connection approval

When you create a private endpoint, the connection must be approved. If the resource for which you're creating a private endpoint is in your directory and you have sufficient permissions, the connection request will be autoapproved. Otherwise, you must wait for the owner of that resource to approve your connection request.

To approve a private endpoint connection, use the az network private-endpoint-connection approve command. Replace the placeholder texts <resource-group>, <private-endpoint>, and <grafana-workspace> with the name of the resource group, the name of the private endpoint and the name of the Azure Managed Grafana resource.

az network private-endpoint-connection approve --resource-group <resource-group> --name <private-endpoint> --type Microsoft.Dashboard/grafana --resource-name <grafana-workspace>

For more information about the connection approval models, go to Manage Azure Private Endpoints.

Delete a private endpoint connection

To delete a private endpoint connection, use the az network private-endpoint-connection delete command. Replace the placeholder texts <resource-group> and <private-endpoint> with the name of the resource group and the name of the private endpoint.

az network private-endpoint-connection delete --resource-group <resource-group> --name <private-endpoint>

For more CLI commands, go to az network private-endpoint-connection
